EPPsys RSD

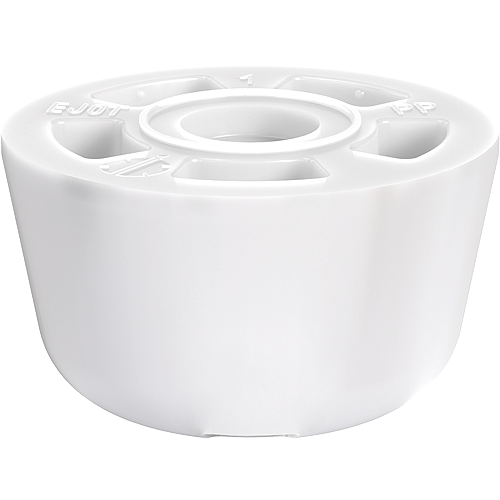

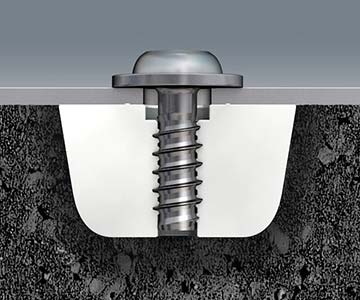

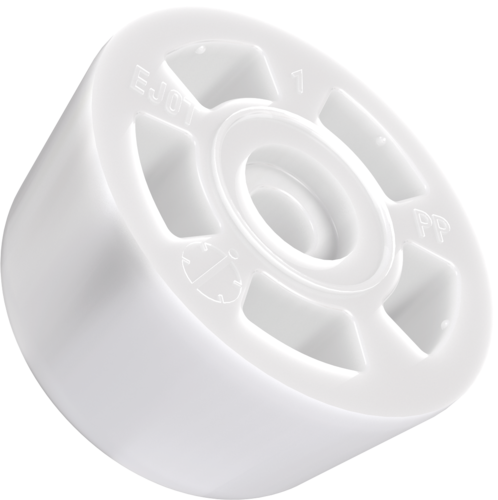

Le système EJOT^® EPPsys RSD est un élément de fixation particulièrement performant pour les mousses en PPE et les composants en PP. Cette solution d'assemblage innovante utilise le procédé de soudage par friction permettant d’intégrer l'élément de fixation dans la mousse en PPE directement et durablement, sans avant-trou. Le système EPPsys RSD permet ensuite un vissage direct, facile et fiable à l’aide de la vis EJOT EVO PT^®.

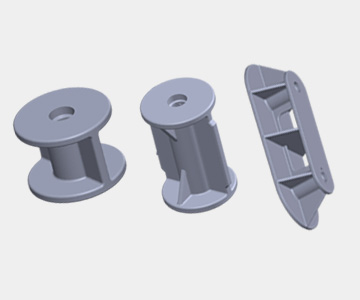

If the EJOT^® EPPsys RSD and its assembly after foaming are not suitable for you, it is also possible to create a joint with our Delta Tubus elements. These parts are inserted into the mould before the foaming process and subsequently surrounded by the EPP or similar foams. Thus, after opening the mould, you get a finished component that already contains the joining elements. EVO PT^® screws 40 or 50 are used for fastening in this case.

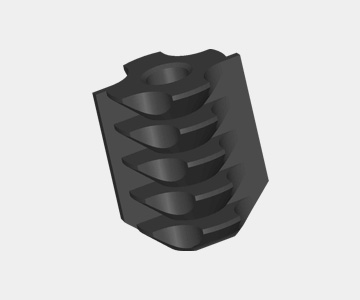

The EPP insert is the easiest solution for creating a screw-in option in foams. This element can be pressed into pre-drilled components thanks to its special ribbed geometry. No special assembly technology is required here – all that is needed is to ensure that the foam component has a pre-hole. This can be drilled or already created during the foaming process. The EPP insert is available with a metric M5 thread. Further hole geometries upon request.
